Specifications
Model

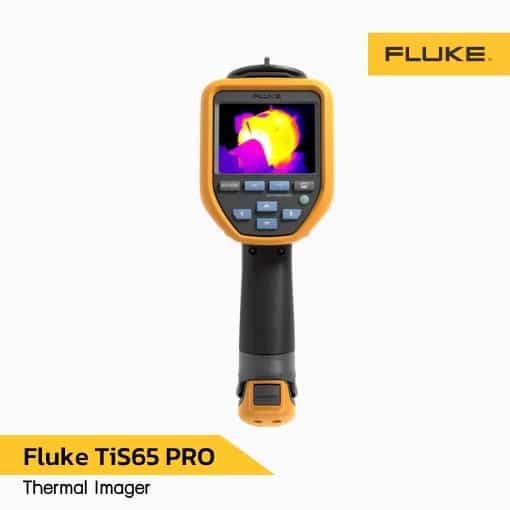

Fluke TiS65 PRO
Key Features
Infrared resolution
320 x 240 (76,800 pixels)
SuperResolution
640 x 480
Detector type
Uncooled focal plane infrared detector
Infrared Spectral response
8 to 14 µm
Field of view
42°: 42° x 32° or
25°: 25° x 19°
IFOV
42°: 2.29 mRad
25°: 1.36 mRad
Minimum focus distance
42°: 0.1 m
25°: 0.15 m
Focus system
Manual focus + focus free
Agile Focus
Yes
Digital Zoom
1-4x
Wireless connectivity
Yes, direct transfer thermal images wirelessly to mobile phones or PCs
Standard software: Fluke Connect Express
Yes, functions such as thermal image analysis, historical trend generation, custom reports, and inspection management supported
Asset tagging
Yes, name thermal images automatically by scanning QR codes or barcodes and save them as asset tags for thermal images
IR-Fusion technology
Blend continuous 0 % to 100 %. 1% step for adding visible details to infrared images
Picture-in-Picture (PIP)
Yes
Display screen
3.5″ (8.9 cm landscape)
Touchscreen 640 x 480 LCD
Ergonomic design
Designed specifically for one-handed use
Thermal sensitivity
<= 40 mk (0.04 ℃)
Temperature level and span
Smooth auto and manual scaling
Fast auto-rescale in manual mode
Yes
Minimum span (in manual mode)
3 °C
Minimum span (in auto mode)
3 °C
Built-in digital camera (visible light)
13 mp
Frame rate
30 Hz
Dew point calculation
No
Temperature Measurement
Temperature span
-20 °C to 600 °C
Temperature range
-20 °C to 150 °C
0 °C to 600 °C
Accuracy
±2 °C or 2%, whichever is greater
(ambient temperature of 18 to 28 °C)
On-screen temperature correction
Yes, emissivity, background temperature, measurement distance and transmission correction supported
Standard palettes
10
Gray, Ironbow, High Contrast, Amber, Hot Metal, Blue-Red, Amber Inverted, Gray Inverted, Rainbow, Steps
Spot temperature
Center spot (unmovable)
Auto high/low temperature capture
High and low temperature points marked and tracked automatically
User-definable spot markers
Points: 5
Lines: 5
Areas: 5
Custom temperature difference calculation
3
3-phase maximum temperature difference calculation
Yes
Image mode
Infrared, visible light, PIP, visible light and infrared fusion
Audible alarm
Alarm objects: highest temperature point, lowest temperature point, center point, custom point or line or area, 3-phase maximum temperature difference, custom temperature difference
Alarm conditions: Above the temperature, below the temperature
Color alarm
Yes, above the temperature, below the temperature, within the temperature span, outside the temperature span
Preset measurement parameters (profile)
Up to 50 profiles can be saved
General Specificiations
Preset shortcut keys
6
Laser
Yes
Flashlight
Yes
Type-C interface
Yes, charging and data transfer supported
Operating temperature
-10 °C to 50 °C
Storage temperature
-20 °C to 60 °C， without batteries
Relative humidity
10% to 95% non-condensing
Safety standards
IEC 61010-1: pollution degree 2
Electromagnetic combability
IEC 61326-1: Industrial Electromagnetic Environment;
CISPR 11: Group 1, Class A
Australia RCM
RCM IEC 61326-1
Radio frequency (WIFI and Bluetooth)
2.4 GHz
Radio output power (WIFI and Bluetooth)
<100 mW
Laser
IEC 60825-1, Class 2; 650 nm; <1 mW
Drop
Engineered to withstand 2 m drop
Ingress protection
IEC 60529: IP52
RoHS3 Directive
Yes
