Specifications
Model

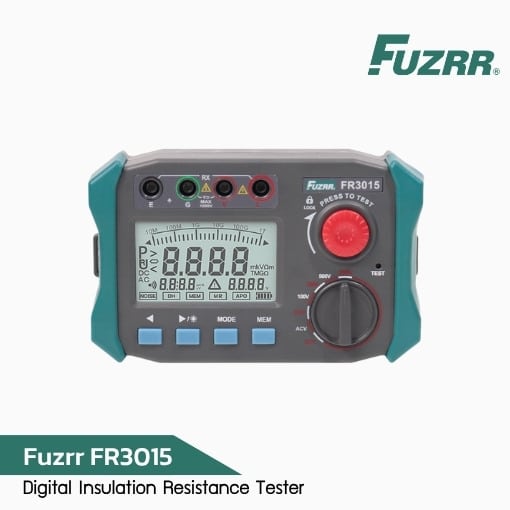

FR3015
FR3015E
Rated voltage
100 ~ 1000V
250 ~ 2500V
Insulation resistance
0.6MΩ ~ 50GΩ
0.10MΩ ~ 100GΩ
Function
Insulation resistance test, voltage test
Base condition
23°C ± 5°C , below 75%RH
Rated voltage (V)
100 ~ 2500V
Measuring voltage
The rated voltage × (1 ± 10%)
Insulation resistance range
100GΩ MAX
Resolution: 0.01MΩ
DC voltage range
0 ~ 1000V
Resolution: 0.1V
AC voltage range
0~750V
Resolution: 0.1V
Output short-circuit current
≥1.5mA (1000V)
Absorption ratio and polarization index measurement
Yes
Power supply
1.5V (AA) alkaline battery 8 sections
Backlight
Controlled gray-white screen backlight, suitable for dark fields
Display mode
4 large LCD display, gray and white screen backlight
LCD display size
73mm × 43mm
Meter size
175mm (long) × 112mm (width) × 53mm (height)
Test line
High-pressure test line red 1 meter, black 1 meter, green line 1 meter
Data storage
500 groups, flashing display “FULL” symbol indicates that the storage is full
Data review
Data viewing function: “MEM” symbol display
Overflow
Extraction overflow function: “OL” symbol display
Alarm function
When the measurement value exceeds the alarm setting value
Power consumption
Standby: 18mA MAX (Backlight shutdown)
Putting on the backlight: 43mA MAX
Measurement consumption
326mA Max (Backlight shutdown)
Quality
1230g (including battery)
Production Compliance
IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529 (IP54), pollution, etc. 2, CAT III 600V
IP
IP54
