Specifications

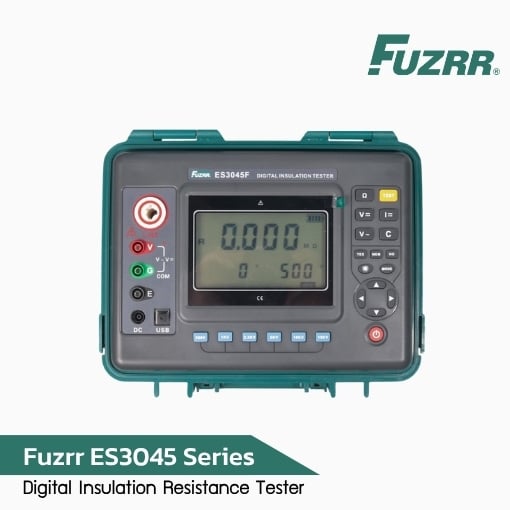

Model
ES3045
ES3045E
ES3045F
Rated applied voltage (V)
100; 250; 500; 1000; 2500; 5k
250; 500; 1000; 2500; 5k; 10k
500; 1000; 2500; 5000; 10k; 15k
Resistance limit range
0.01MΩ ~ 10TΩ
0.01MΩ ~ 35TΩ
0.01MΩ ~ 50TΩ
Resolution
0.01MΩ
0.01MΩ
0.01MΩ
Accuracy
±3%rdg±5dgt
±3%rdg±5dgt
±3%rdg±5dgt
Output short-circuit current
≥6mA
≥6mA
≥6mA
Function
Insulation resistance test, voltage test, current test, capacitance test
Basic condition
23°C±5°C , below 75%rh
DC voltage range
0.1 ~ 1000V
Accuracy: ±1.5%rdg±3dgt
Resolution: 0.1V
AC voltage range
0.1 ~ 750V
Accuracy: ±1.5%rdg±3dgt
Resolution: 0.1V
DC current measurement
0.01nA ~ 6mA
Accuracy: ±5.0%rdg±2dgt
Resolution: 0.01nA
Capacitance test
10nF ~ 50uF
Accuracy: ±10%rdg±5dgt
Resolution: 10nF
Absorption ratio and polarization index measurement
Have
Power
11.1V rechargeable battery
Backlight
Controllable gray screen backlight, suitable for use in dim places
Display mode
4-bit large LCD display, gray screen backlight
Instrument size
240mm (L) × 188mm (W) × 85mm (H)
USB interface
With USB interface, software monitoring, storage data can can upload computer, save and print
Communication line
USB communication line 1pc
Test line
High voltage rod red line 3 meters, high voltage test line black line 1.5 meters, green line 1.5 meters
Alarm function
When the measured value exceeds the alarm set value, an alarm prompt is issued.
Instrument weight
2720g (including battery)
Production Compliance
IEC61010-1, IEC60529(IP54), Pollution Grade 2, CAT III 300V / CAT III 1000V / CAT IV 600V
IP
IP54
