Specifications
Model

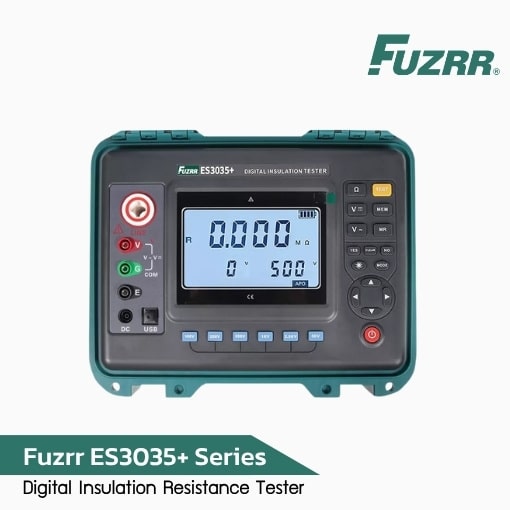

ES3035+ (5000V)
ES3035E+ (10 kV)
Rated voltage (V)
100; 250; 500; 1000; 2500; 5000
250; 500; 1000; 2500; 5000; 10k
Insulation resistance range
0.01MΩ~2000GΩ
0.01MΩ~2000GΩ
Resolution
0.01MΩ
0.01MΩ
Accuracy
±3%rdg±5dgt
±3%rdg±5dgt
Output short-circuit current
≥5mA (5000V)
≥5mA (10KV)
DAR & PI
Have
Have
USB connect computer
Have
Have
Function
Insulation resistance test, voltage test
DC Voltage Range
0 ~ 1000V
Resolution: 0.1V
AC Voltage Range
0 ~ 750V
Resolution: 0.1V
Power
11.1V rechargeable battery
Backlight
Controllable gray screen backlight, suitable for use in dim places
Display mode
4-bit large LCD display, gray screen backlight
LCD display size
108mm × 65mm
Instrument size
L/W/H: 277.2mm × 227.5mm × 153mm
Test Line
High voltage test line red 3 meter, black 1.5 meter, green line 1.5 meter
Data Storage
500 groups, “FULL” symbol indicates that storage is full
Data Review
Data review function: “READ” symbol display
Overflow Display
Exceed measurement range overflow function: “OL” symbol display
Alarm Function
Alarm when the measured value exceeds the alarm setting value
Power consumption
Standby: 30mA Max (backlight off); Turn on back light: 42mA Max; Measure: 200mA Max (backlight off)
Instrument weight
2720g (including battery)
Automatic shut-down
The instrument will automatic turn off after about 15 minutes without operation.
Insulation Resistance
≥50MΩ (between Measuring line and housing)
Pressure Resistance
AC3kV/50Hz 1min
Production Compliance
IEC61010-1, IEC60529(IP54), Pollution Grade 2, CAT III 300V / CAT III 1000V / CAT IV 600V
IP
IP54
