Specifications
SPECIFICATIONS
Function / Model
FR210C
FR210E

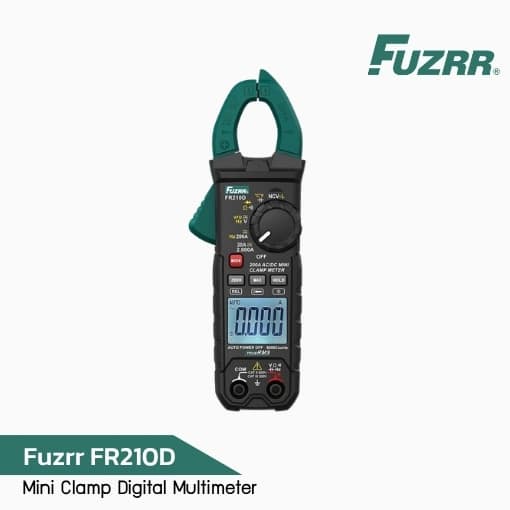

FR210D
Accuracy
DC Current(A)
20.00A / 200A
2.000A / 20A / 200A
2.000A / 20A / 200A
±(3.0%+30) ±(2%+5)
AC Current (A)
20.00A / 200A
2.000A / 20A / 200A
20.00A / 200A
±(2%+5)
DC Voltage (V)
400mV / 4V / 40V / 600V
600mV / 6V / 60V / 600V
600mV / 6V / 60V / 600V
±(0.5%+3)
AC Voltage (V)
4V / 40V / 600V
6V / 60V / 600V
6V / 60V / 600V
±(0.8%+3)
VFD (AC Voltage) Variable Frequency
–
100 ~ 600V / 400HZ
100~600V / 400Hz
±(4%+5)
ACV / Bandwidth (Hz)
400Hz
1kHz
1kHz
–
Frequency (ACV Hz)
10Hz~ 40kHz
10Hz ~ 60kHz
10Hz ~ 60kHz
±(0.5%+5)
Resistance (Ω)
400Ω ~ 400kΩ 4MΩ ~ 40MΩ
600Ω / 6kΩ / 60kΩ / 600kΩ 6MΩ / 60MΩ
600Ω ~ 600k 6MΩ ~ 60MΩ
±(1%+5) ±(2%+5)
Capacitance (F)
40nF~400nF~400uF 4000uF
60nF ~ 600nF ~ 600uF 6000uF ~ 60000uF
60nF~600nF~600uF 6000uF~60000uF
±(4%+5) ±(8%+5)
Temperature (℃)
–
–
(-50℃~1000℃)
±(1.5%+4)
Temperature (℉)
–
–
(-58℉~1832℉)
±(2%+5)
FEATURES
Display Counts
4000
6000
6000
VFD (Variable Frequency)
–
●
●
Auto Range
●
●
●
True RMS
●
●
●
Continuity / Diode
●
●
●
AC Live
●
●
●
Auto power off
●
●
●
Backlight / Torch
●
●
●
Power
AAA 1.5V×2
Category Ratings
CAT III 300V CAT II 600V
