FOTRIC 346A

Product Variations

Fotric 346A-L25
Fotric 346A-L44
Fotric 346A-L12
Fotric 346A-L25-L44
Fotric 346A-L25-L12
Fotric 346A-L44-L15
Fotric 346A-L25-L7
Fotric 346A-L44-L7
Fotric 346A-L25-L44-L12
Fotric 346A-L25-L44-L7
Fotric 346A-L25-L44-L12-L7

Models

Model	Lens
FOTRIC 346A	25°H x 19°V	44°H x 34°V	12°H x 9°V	7°H x 5°V
FOTRIC 346A-L25	●
FOTRIC 346A-L44		●
FOTRIC 346A-L12			●
FOTRIC 346A-L25-L44	●	●
FOTRIC 346A-L25-L12	●		●
FOTRIC 346A-L44-L15		●	●
FOTRIC 346A-L25-L7	●			●
FOTRIC 346A-L44-L7		●		●
FOTRIC 346A-L15-L7			●	●
FOTRIC 346A-L25-L44-L12	●	●	●
FOTRIC 346A-L25-L44-L7	●	●		●
FOTRIC 346A-L25-L44-L12-L7	●	●	●	●

Overview

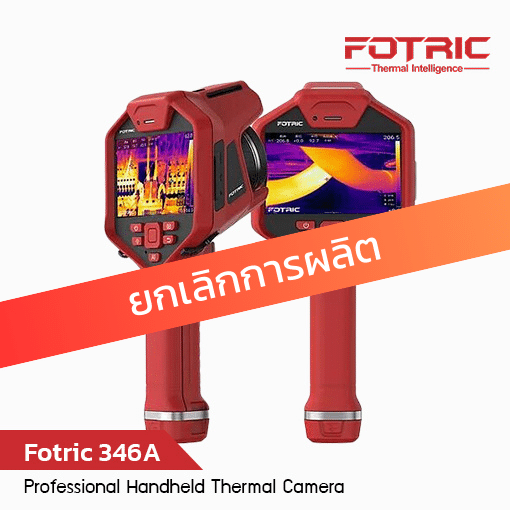

The FOTRIC 346A is an advanced handheld thermal camera, designed for professionals to improve maintenance efficiency in Electric industry, Oil and gas, and Manufacturing industries.Its 384 x 288 thermal resolution and 40mk NETD enable superior imaging display on 5” LCD touch screen. Other advanced features like laser-assisted autofocus, inter-changeable Lens options, and powerful AnalyzIR report software, all boost the operational performance, making it an ideal tool for site inspections.

Specifications

Key Features	Fotric 346A
Infrared Resolution	384*288
Thermal Sensitivity（NETD)	＜0.04℃@30℃
Temperature Measurement Range	-20℃ to 150℃ (-4℉ to 302℉); 0℃ to 650℃(32℉ to 1202℉); 200℃ to 1200℃(392℉ to 2192℉); smart switch between
User-definable Markers	8 spot markers; 8 (rectangle or circle); 8 measurement lines
Focus Mode	TurboFocus™ Speedy Intelligent Autofocus system for continuous, laser distance, graphic contrast,manual
Field of View（FOV）- Standard Lens	25°×19°
Interchangable Lens Options	Wide-angle:44°×34°(<0.1m), IFOV:2.0mrad Telephoto:15°×11°(<0.25m), IFOV:0.68mrad Ultra Telephoto:7°×5°(<1.0m), IFOV:0.32mrad
AI Programmable Key	Yes, for quick start
Frame Rate	30Hz
Lens Options	Optional wide-angle lens,telephoto lens and ultra telephoto lens
Storage Memory	128GB micro SD memory card
Accuracy	± 2℃ or ± 2 %, whichever is greater（ambient temp between15℃~35℃)
On-screen Analysis	Emissivity, Partially emissivity, Reflected temperaure, Ambient temperature, Humidity and Distance.
Sound Alarms	Area alarm; High temperature alarm and low temperature alarm
Display	Gorilla Glass Explosion-proof IPS LCD Display pixels: 1280*720，Display size: 5inch (landscape)
Build-in Digital Camera (visible light)	13-megapixel, industrial digital camera
Palettes	15 standard palettes, 3 color isotherm, 15 inverted palettes
Image File Formats	Standard JPEG with measurement data included
Video File Formats	Full radiation thermal image video in IRS format; standard MPEG4 non radiation video;
Remote Control Operations	Remote display and control operation through Fotric AnalyzIR software
Battery Life	Over 4 hours per battery
Battery Charging System	Two-bay battery charger with LED display (12V, 3A)
Device Interface	Support USB Type-C 3.0, Micro HDMI and SD card
Operating Temperature	-20℃ to +50℃(-4℉ to 122℉)
Drop	Engineered to withstand 2 meters (6.5 feet) drop with standard lens
Enclosure Rating	IP54 (protected against dust, limited ingress; protection against water spray from all directions),GB/T 4208-2017/IEC60529:2013
Weight (battery included)	＜1.0kg (lens not included)
